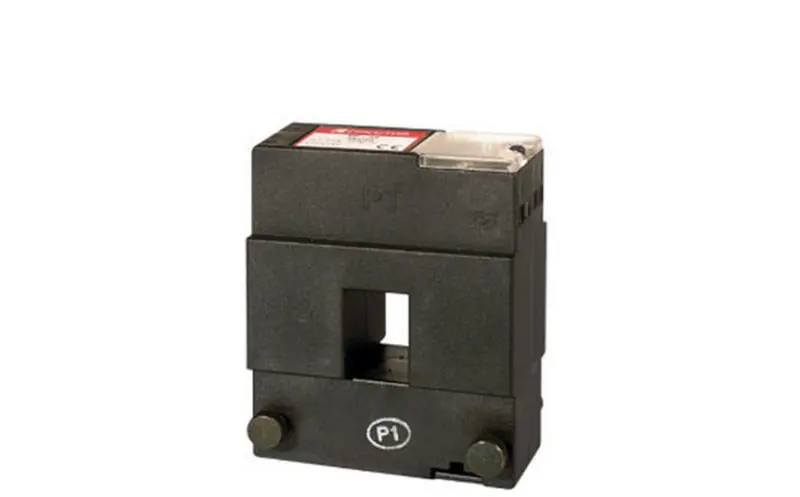

TP-23 50 Split-Core Current Transformer

CIRCUTOR TP-23 50/5: Split-Core Current Transformer (Code: M7011A)

The TP-23 50/5 current transformer by CIRCUTOR offers a practical and efficient solution for current measurement in single-phase systems without interrupting the power supply. Designed with a split-core structure, it simplifies installation and ensures reliable performance across a wide range of applications.

Key Features:

• Non-Interruptive Installation: Split-core design allows for easy installation without dismantling or cutting off the power supply.
• Wide Measurement Range: Suitable for currents ranging from 50 A to 5000 A with a transformation ratio of 50/5 A.
• Compact and Durable: Robust construction with dimensions of 110 x 89 x 58 mm and a thermal class rating of +130°C.
• Certified Accuracy: Class 3 power accuracy with 1.5 VA rated power ensures precise current measurement.
• Standard Compliance: Conforms to IEC 44-1, UNE 21 088-1, UL 94, and VDE 0414 standards for safety and reliability.

Technical Specifications:

• Electrical:
  • Rated Power: 1.5 VA
  • Safety Factor (SF): 10
  • Nominal Frequency: 50/60 Hz
  • Primary Current: 50 A
  • Dynamic Current (Idyn): 2.5 Ith
  • Thermal Short-Circuit Current (Ith): 60 In
• Environmental:
  • Operating Temperature: -5°C to +40°C
  • Maximum Voltage: 0.72 kV~
• Mechanical:
  • Dimensions: 110 x 89 x 58 mm
  • Weight: 0.685 kg
  • Busbar Compatibility: 20 x 30 mm to 80 x 160 mm

Applications:

The TP-23 50/5 current transformer is ideal for converting high nominal currents to lower, manageable levels for accurate measurement and monitoring in industrial and commercial systems.

The CIRCUTOR TP-23 50/5 Split-Core Current Transformer is a dependable solution for efficient and accurate current measurement in modern power systems.
