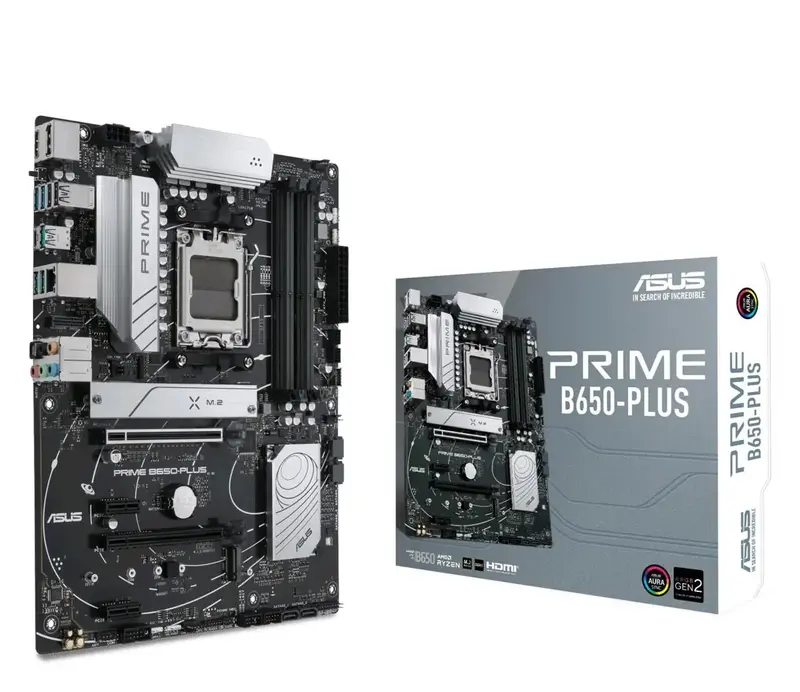

ASUS Prime B650-Plus

Hinweis: Nach §25a UStG wird im Rahmen der Differenzbesteuerung keine Umsatzsteuer ausgewiesen.

• Formfaktor/CPU

  ATX Mainboard mit Sockel AMD AM5 für AMD RYZEN 7000 Serie
• Chipsatz

  AMD B650
• Arbeitsspeicher

  128 GB maximaler Arbeitsspeicherbis 6400MHz maximale Taktung4x RAM-Slots (Steckplätze für Arbeitsspeicher)Speichertyp: DDR5Dual Channel-Architektur
• Graphik

  Radeon Vega Grafik (Ryzen CPU) Grafikchipsatz
• Steckplätze

  AMD Ryzen™ 7000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x16 mode)AMD B650 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)2 x PCIe 4.0 x1 slots
• Anschlüsse

  Interne Anschlüsse:Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 connector (supports USB Type-C® )1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt™ (USB4®) headerExterne Anschlüsse:4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)2 x USB 3.2 Gen 1 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI® port1 x Vertical M.2 slot (Key E)1 x Realtek 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button
• Netzwerk/ Kommunikation

  1x Gigabit-LAN,
• Sound

  Realtek 7.1 Surround Sound High Definition Audio CODEC
• Besonderheiten

  ASUS 5X Protection III, Q-Design, Thermal Solution, AURA Sync
• Lieferumfang

  1 x HandbuchCables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 Rubber Package1 x Screw package for M.2 SSD
