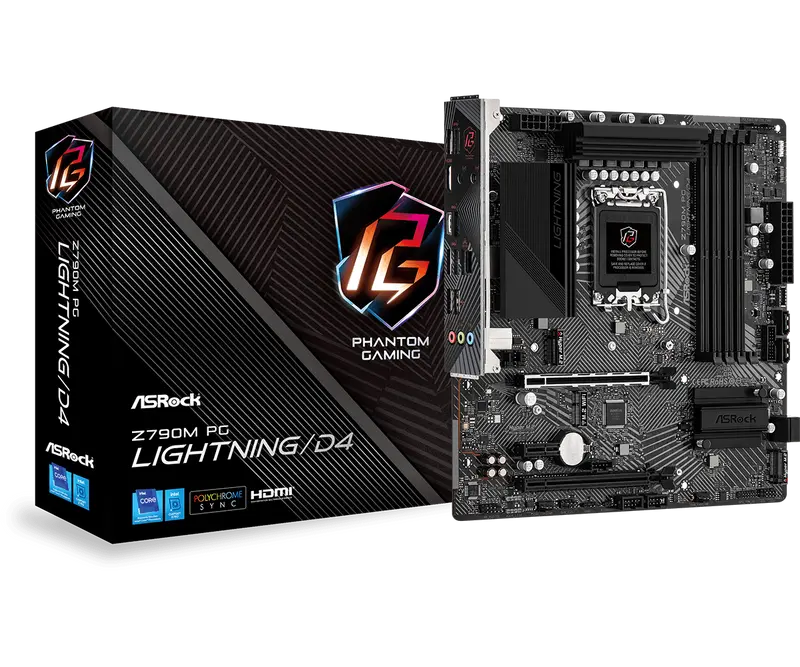

Z790M PG Lightning/D4
Einzigartige Features
Solide Haltbarkeit
– 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT
– Vorinstallierte E/A-Abschirmung
EZ-Update
– ASRock Auto-Treiber-Installer
EZ Troubleshooter
– ASRock Post Status Checker
– 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT
– Vorinstallierte E/A-Abschirmung
EZ-Update
– ASRock Auto-Treiber-Installer
EZ Troubleshooter
– ASRock Post Status Checker
CPU
– Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
– Supports Intel Hybrid Technology
– Supports Intel Turbo Boost Max 3.0 Technology
– Supports Intel Thermal Velocity Boost (TVB)
– Supports Intel Adaptive Boost Technology (ABT)
– Supports Intel Hybrid Technology
– Supports Intel Turbo Boost Max 3.0 Technology
– Supports Intel Thermal Velocity Boost (TVB)
– Supports Intel Adaptive Boost Technology (ABT)
Chipsatz
– Intel Z790
Arbeitsspeicher
– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 128GB
– Supports Intel Extreme Speicherprofile (XMP) 2.0
– 4 x DDR4 DIMM Slots
– Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 128GB
– Supports Intel Extreme Speicherprofile (XMP) 2.0
1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively.
2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.
1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively.
2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.
BIOS
– 128Mb AMI UEFI Legal BIOS with GUI support
Grafik
– Intel Xe Graphics Architecture (Gen 12)
– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. Auflösung up to 4K 60Hz
– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. Auflösung up to 4K 60Hz
Intel UHD Graphics Built-in Visuals und die VGA-Ausgänge können nur bei der Verwendung von CPUs mit integrierter GPU-Einheit genutzt werden.
Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio
– Nahimic Audio
LAN
– Gigabit LAN 10/100/1000 Mb/s
– Intel I219V
– Intel I219V
Steckplätze
CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
– 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode
– 1 x PCIe 3.0 x1 Slot (PCIE2)
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
– 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode
– 1 x PCIe 3.0 x1 Slot (PCIE2)
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– Supports AMD CrossFire
Unterstützt NVMe-SSD als Boot-Festplatte
Speicherplatz
CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
– 4 x SATA3 6.0 Gb/s Connectors
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
– 4 x SATA3 6.0 Gb/s Connectors
Supports Intel Volume Management Device (VMD)
Unterstützt NVMe-SSD als Boot-Festplatte
Unterstützt NVMe-SSD als Boot-Festplatte
RAID
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA Speichergeräte
– Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe Speichergeräte
– Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe Speichergeräte
Requires additional M.2 NVMe expansion cards to support RAID 10
USB
– 1 x USB 3.2 Gen2 Type-A (Rear)
– 1 x USB 3.2 Gen2 Type-C (Rear)
– 1 x USB 3.2 Gen1 Type-C (Front)
– 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
– 6 x USB 2.0 (2 Rear, 4 Front)
All USB ports support ESD Protection
– 1 x USB 3.2 Gen2 Type-C (Rear)
– 1 x USB 3.2 Gen1 Type-C (Front)
– 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
– 6 x USB 2.0 (2 Rear, 4 Front)
All USB ports support ESD Protection
Anschluss
– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x RGB LED Header
– 3 x Addressable LED Headers
– 1 x CPU Fan Connector (4-pin)
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x RGB LED Header
– 3 x Addressable LED Headers
– 1 x CPU Fan Connector (4-pin)
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header
Unterstützt insgesamt bis zu 12V/3A, 36W-LED-Strip
Support in total up to 5V/3A, 15W LED Strip
CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2/WP supports the fan power up to 2A (24W).
CHA_FAN1~4/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.
Blende
– 2 x Antennenmontagepunkte
– 1 x HDMI Port
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
– 4 x USB 3.2 Gen1 Ports
– 2 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– HD Audio Jacks: Line in / Front Speaker / Microphone
– 1 x HDMI Port
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
– 4 x USB 3.2 Gen1 Ports
– 2 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software und UEFI
Software
– ASRock Motherboard Utility (Phantom Gaming-Einstellung)
– ASRock Polychrome SYNC
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto-Treiber-Installer
– ASRock Sofort-Flash
– ASRock Easy RAID Installer
– ASRock Motherboard Utility (Phantom Gaming-Einstellung)
– ASRock Polychrome SYNC
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto-Treiber-Installer
– ASRock Sofort-Flash
– ASRock Easy RAID Installer
Diese Tools können im Live Update & APP Shop heruntergeladen werden.
Produktzubehör
– 1 x Benutzerhandbuch
– 2 x SATA Data Cables
– 3 x Screws for M.2 Sockets
– 2 x SATA Data Cables
– 3 x Screws for M.2 Sockets
Formfaktor
– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Betriebssystem
– Microsoft Windows 10 64-bit / 11 64-bit
Windows 10 only supports version 21H2 or later
