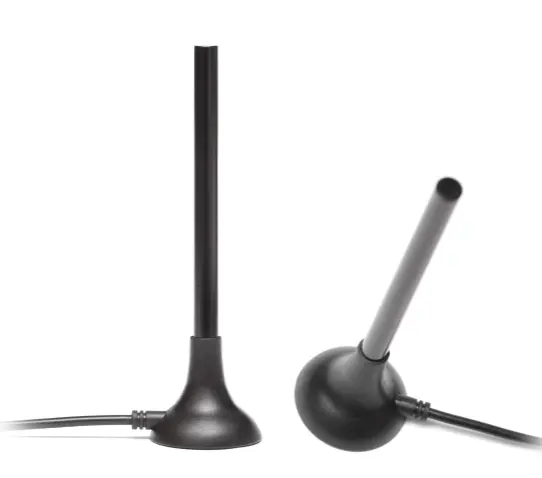

5G Magnetic Mount IoT Antenna

Product Overview:

The ANT-LXM66476-SMA-M is a magnetic-mount 5G antenna that offers excellent performance across multiple frequencies. It is ideal for applications where portability and easy installation are required.

Key Features:

• Supports 5G, 4G LTE, 3G, and 2G
• Magnetic mount for quick installation
• Ground-plane dependent
• Customizable cable and connector options
• Dimensions: Ø 31 × 109 mm

Technical Specifications:

• Frequency Ranges:
  • 617-960 MHz
  • 1427-2690 MHz
  • 3300-5000 MHz
  • 5150-5925 MHz
• Peak Gain: 2.9 dBi
• Impedance: 50 Ohm
• Polarization: Linear
• Max Input Power: 35W
• Connector Type: SMA-Male
• Cable Length: 300 cm (custom lengths available)
• Cable Type: LL100
• Operating Temperature: -40°C to +85°C

Installation Notes:

This antenna is designed for magnetic mounting. Ensure the mounting surface is metallic for optimal signal performance.

Frequently Asked Questions:

Q1: Can the antenna be easily relocated?
A1: Yes, the magnetic mount allows for quick and easy relocation of the antenna without requiring tools.

Q2: Does the antenna require a ground plane?
A2: Yes, this antenna is ground-plane dependent for optimal performance.

Inquire for customization options eg connector, cable length, and bulk quantity.
